Product introduction

ANYPOLⅡ

  • HOME >
  • Product Introduction >
  • ANYPOLⅡ

Physical Properties

Physical Properties
Properties Standard Unit Specification
Density KSM 3808
(=JIS A 9511)
g/ℓ 15 20 25 30
Thermal Conductivity w/m.k 0.034 0.033 0.032 0.031
Flexural Strength kgf/cm2 1.5 2.2 3.0 3.5
Compressive Strength kgf/cm2 0.5 0.8 1.2 1.6
Water Absoption g/100cm2 max 1.5 max 1.0 max 1.0 max 1.0
Flammability Time sec Burning time within 120 seconds, a burning object below 60mm

※Note : These typical property values are intended to serve as guidelines, not to be construed as guaranteed specifications.

ANYPOL Ⅱ Physical Properties Graph

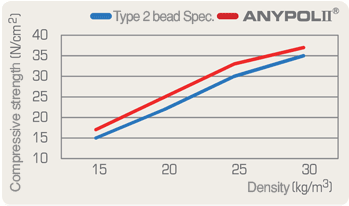

Compressive strength

Compressive strength graph

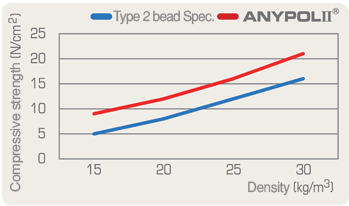

Flexural strength

Flexural strength graph
